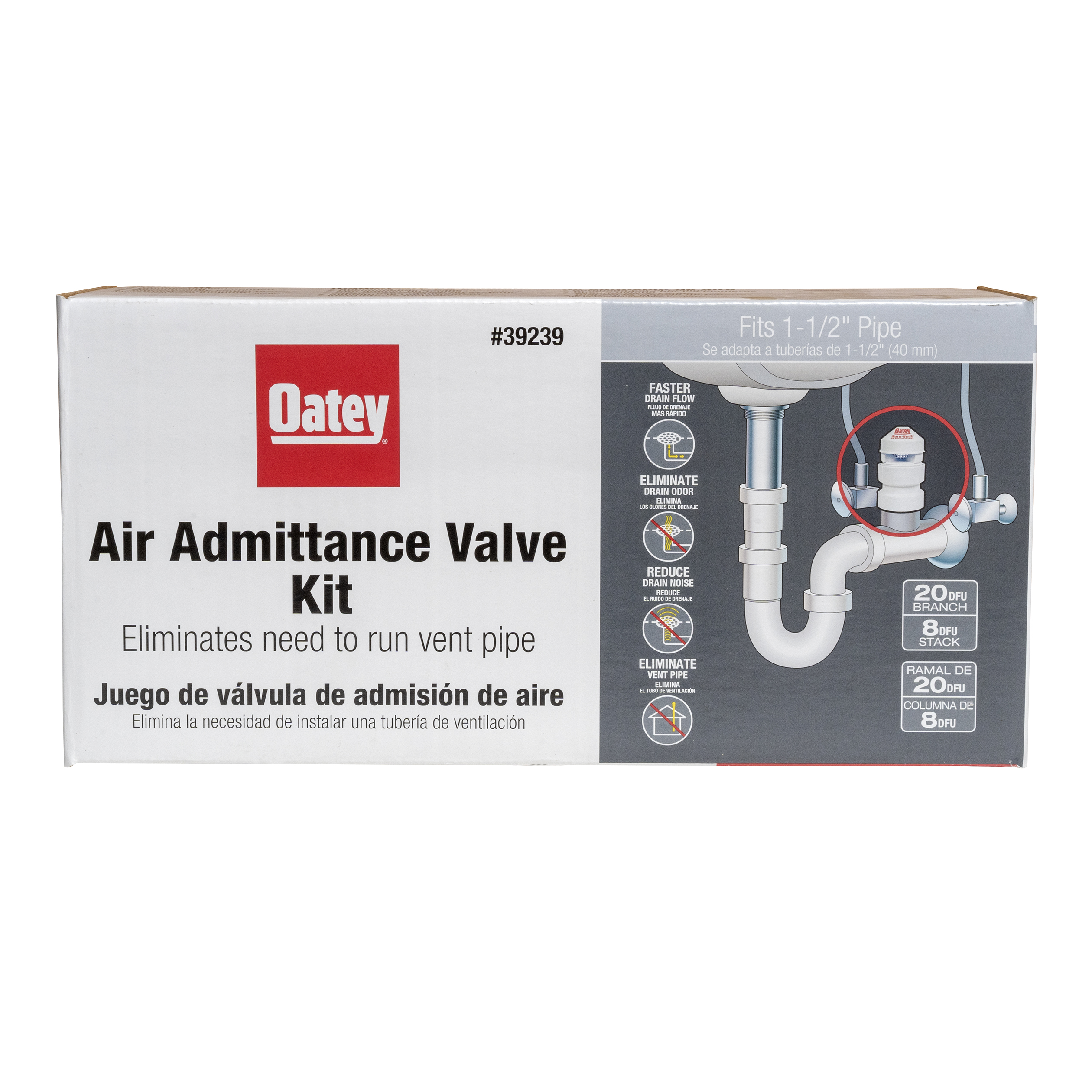

39239 Oatey® Sure-Vent® Air Admittance Valve

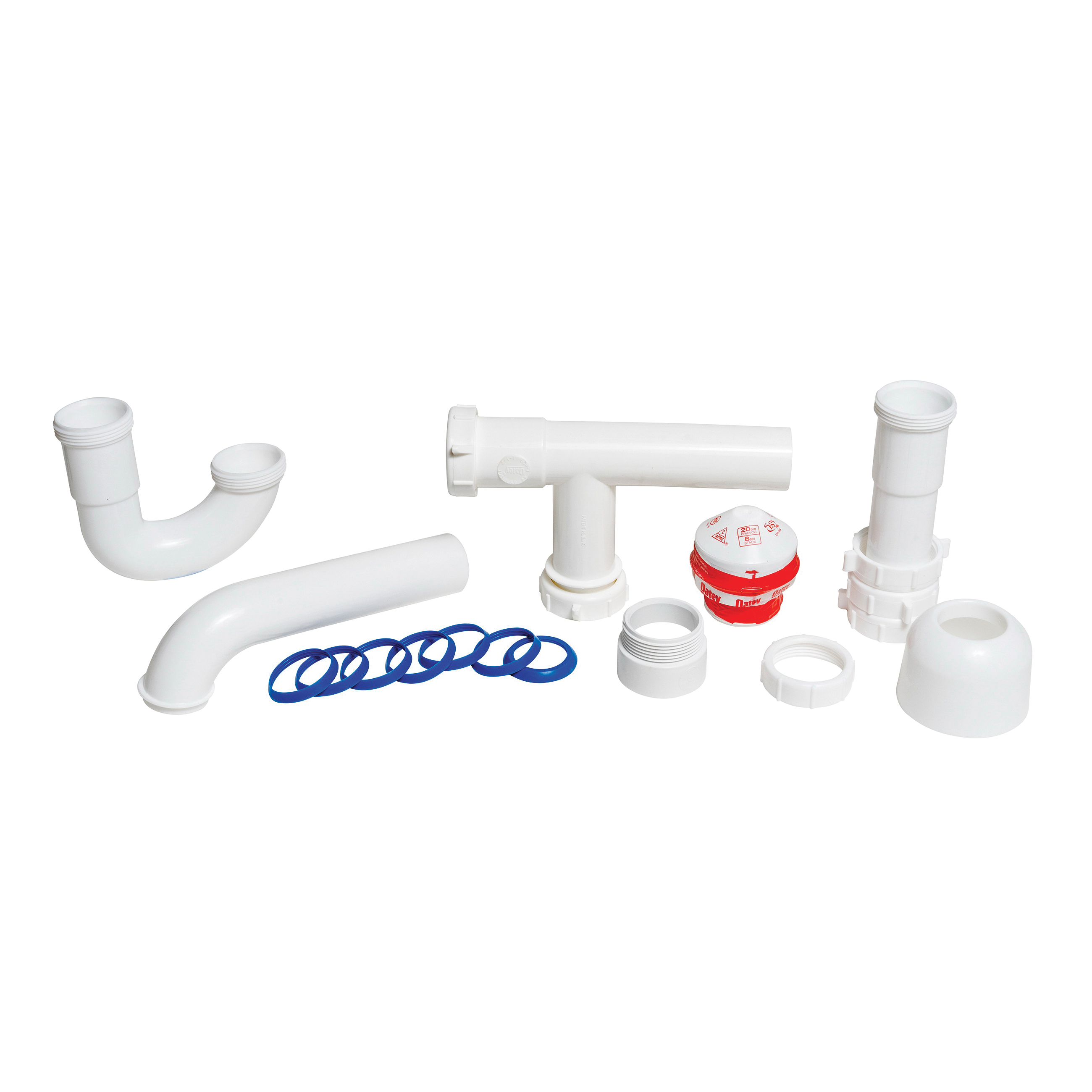

Oatey® Sure-Vent® 39239 Air Admittance Valve Installation Kit, 1-1/2 in Nominal, NPT End Style, 6 DFU Flow Rate, PVC Body, Import
Manufacturer: McTest-LeeTaxonomy
Brand: Valves
Lee Supply #: 474409
Manufacturer Part #: 39239
UPC: 3875339239
Customer Part #:
Carmel
| Body Material | : | PVC |
| Dimensions | : | 7-3/4 in H |
| Domestic/Import | : | Import |
| End Style | : | NPT |
| Flow Rate | : | 6 DFU |
| Inlet to Outlet Length | : | 4 in |
| Lee_Descr | : | 39239 - OATEY 20 BRANCH- 8 STACK DFU SURE-VENT- 1.5 IN- INSTAL PK |
| Lee_UPC | : | 3875339239 |
| Nominal Size | : | 1-1/2 in |
| Temperature Rating | : | -40 to 150 deg F |
| UPC_Lee | : | 3875339239 |
| Weight | : | 1.38 lb |
| Width | : | 6.25 in |
| Length | : | 13.5 in |
| Height | : | 4.5 in |
Oatey® Sure-Vent® 6 DFU Capacity Air Admittance Valve is a one-way valve designed to allow air to enter the plumbing drainage system when negative pressures develop in the piping system.
Oatey® Sure-Vent® Air Admittance Valve Installation Kit, 1-1/2 in Nominal, NPT End Style, -40 to 150 deg F, 6 DFU Flow Rate, 4 in Inlet to Outlet Length, PVC Body, 7-3/4 in H, Import
- For use as a secondary vent
- One size approved to handle upto 2 in vent pipe
- Vents upto 24 DFU branch or 8 DFU stack

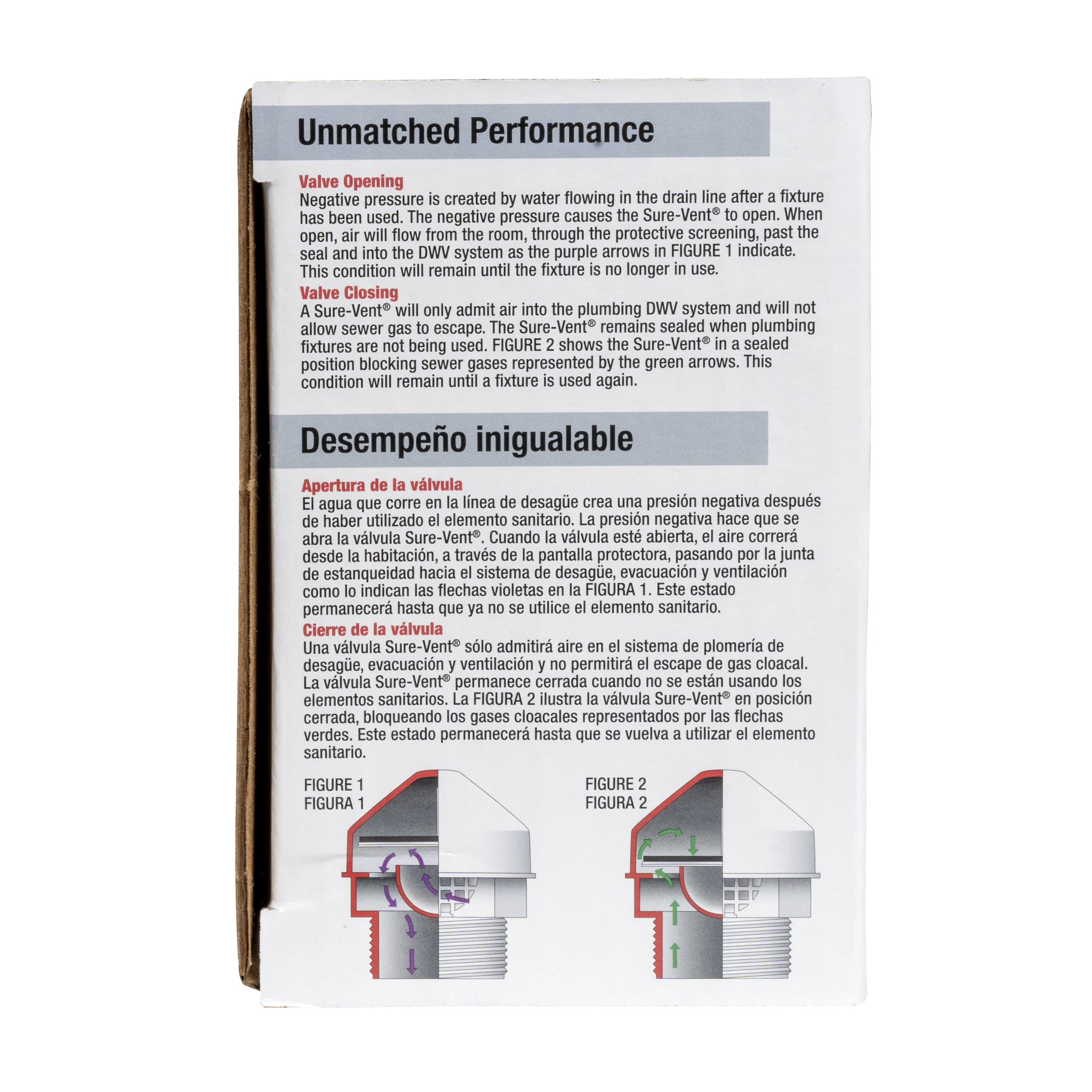

- Sweet Spot™ technology opens at 0.01 psi and seals at 0 psi and above
- Screening on air inlets to guard the seal
- Protective sleeve provides grip for installation and keeps valve free from debris
- 100% functionally tested at 1/4 in H2O and 30 in H2O ensuring trouble free performance
- Opens/closes as needed by building's plumbing system
- Closes through gravity
